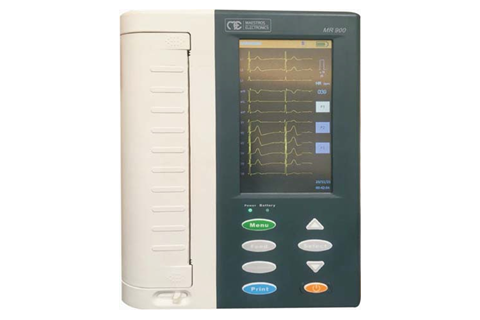

ECG MACHINE 12 CHANNNEL - INDIAN BRAND

• 12 Channel A4size
• 7″ Color TFT display with Touch Screen
• 12 Leads simultaneous ECG acquisition
• Interpretation Facility
• 12 Lead ECG Display
• Various Printing formats:
• > 50 ECG on fully charged
• Has inbuilt PDF convertor which facilitate transfer of ECG from the device to USB in PDF format

• Electrical
  Power Supply	100-240 VAC, 50 - 60 Hz, 1.5A - 0.8 A
  Power Consumption	65 Watt
  Filters	Digital AC/ 50 Hz
  Battery Rating	11.1 V, 4400 mAh, Li-ion Battery
  Recharging Time	4 Hours Max.
  Operating Time	> 50 ECG’s
  Measuring Parameters
  Leads	12 Standard Leads
  Mode of Operation	Auto
  Long Lead Print	Yes
  ECG Print Style	3 x 4 + 1, 6 x 2, 12
  Display Lead	Yes
  Display Type	5” Color TFT
  Display Resolution	800 x 480 Pixels
  Frequency Response	0.05 to 150 Hz
  Sweep Speed	12.5/25/20 mm/s
  Sensitivity	5/10/15/20 mm/mV
  CMRR	105 dB
  Input Impedance	10 M Ohms
  Patient Storage Data	5 Patients
  Printer Type	Thermal Printer
  Paper Width	210 mm
  Memory Stick Interface	Yes
  Interpretation	Yes
  Operating & Storage Condition
  Temperature	25 - 55 C
  Pressure	50 - 160 Kpa
  Humidity	Up to 90% non condensing
  Physical Characteristics
  Weight	2.730 Kg
  Dimensions	308 (L) x 240 (B) x 80(H) mm
