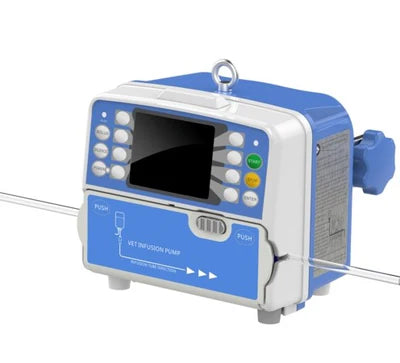

The iVet H-100 infusion pump has a removable pump body with free-flow protection, a history record, and a rotatable pole champ.\

Features:

• history records
• mini-size, lightweight, easy operation.
• KVO function, KVO starts automatically when the infusion is finished.
• Anti-reverse rotation detection.
• Various visual and audible alarms.
• Real-time display.
• 3 adjustable occlusion pressure settings.
• Removable pump body, convenient for cleaning.
• Free-flow protection.
• Double CPU ensuring safe infusion.

Specifications:

• Infusion rate of 0.1-1200mL/h
• Infusion accuracy of +- 5%
• Applicable infusion sets for various brands of standard infusion.
• Volume to be infused from 0 to 9999 mL.
• Volume infused up to 36000 mL
• KVO rate of 1-5mL
• Bolus rate of 300-1200 mL/h
• Purge rate of 600mL/h
• Air Bubble detection with an ultrasound sensor with four levels of air in the line alarm.
• Occlusions pressure of (40.0 - 160.0) kPa 3 adjustable occlusions pressures: low- middle (default)- high.
• Anti Bolus (diminishes the unwanted volume of bolus injected in the patient after occlusion removal).
• intelligent pressure detection alarm.
• anti-reverse detection.
• History records can be looked up through a computer.
• screen simultaneously displays the infusion rate, drip rate, VTBI, volume infused, real-time, etc.
• Adjustable buzzer volume.
• Power supply: 2.0 V AC: 100-240V, 50/60Hz.
• Batter: rechargeable li-polymer battery, 7.4V 1900mAh.
• Battery charging time: 101 hours with power-on, 3 hours with power off.
• Battery operating time: About 6 hours at 25mL/h.
• Power consumption: 35VA.
• Classification: Class I, type CF.
• Waterproof: IP24.
• Dimensions: 145 x 100 x 120 mm (L x W x H).
• Weight: 1.4 Kg.
• Operating conditions: temperature: 5°C - 40°C, humidity 10-95%, pressure 86-106kPa.
