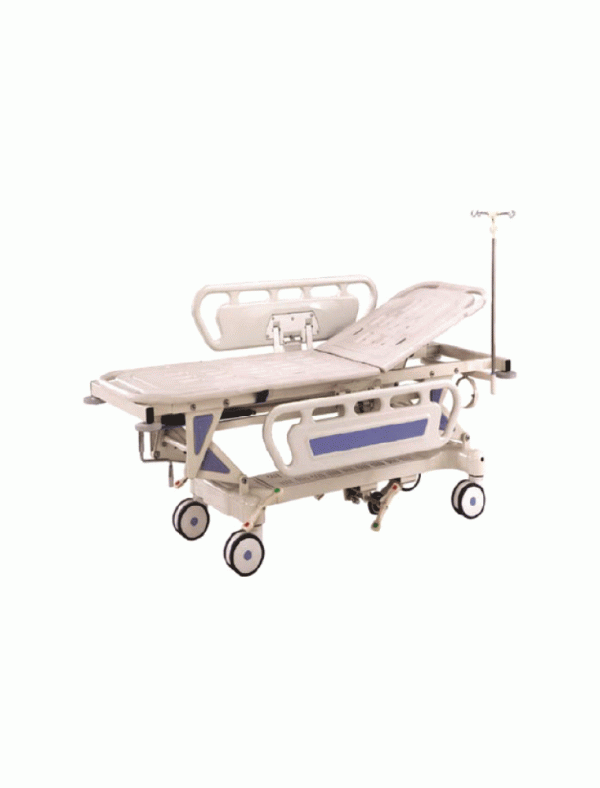

Standard Configurations ○ Both of the platform and side rails are made of ABS material shaped once for all. ○ Backrest is controlled by hydraulic auxiliary gas spring. ○ Height adjustable is operated by crank. ○ Dia.150mm castors with central locking system. ○ To be equipped with steering castor.
Technical features Outer dimensions (Side rails up): L1970*W660mm（±10mm） Mattress platform: L1930*W610mm（±10mm） Bed height: H580-870m（±10mm） Maximum backrest angle: ≥70° Maximum thigh rest: ≥25° Height of side rails(above mattress platform): 380mm（±10mm） Safe working load: 200kgs
