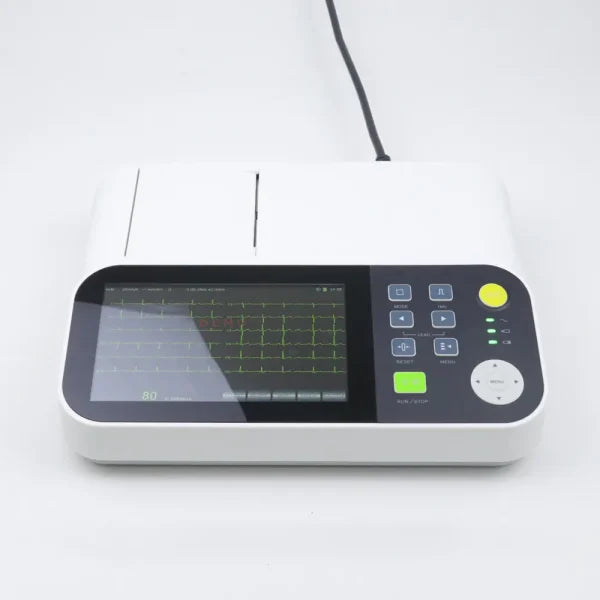

Yonker 3 Channel ECG Machine 7inch Display With Touch Screen

• Input circuit Floating, Protection against defibrillator effect
• Voltage tolerance：±500m V
• Time constant:＞3.2s
• Frequent response： 0.05Hz~150Hz
• Input Impedance： ＞50MΩ
• Input Circuit Current： ≤ 0.1µ A
• Patient Auxiliary Current：: < 10µ A (220V-240V/50Hz)
• CMRR: ≥ 100dB, with AC Filter
• A/D ResolutionA/D: 12bits/1000HZ
• Acquisition Mode:Simultaneously acquisition of 12 lead, full
• screen display of 12 channel ECG waveforms.
• Sensitivity：5，10，20mm/mV

1.Modern in design, light in weight, compact in size.

2.Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms. 7” color screen, both push-button and touch operation（optional）.

3.Sensitive filters of ADS, HUM, and EMG.

4.Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.

5.Automatic adjustment of baseline for optimal recording.

6.Thermal printer with 80mm print paper, synchronization print.

7.Lead off detection function.

8.Built-in rechargeable li-ion battery (12V/2000mAh), AC/DC power conversion. Adapt to 100-240V, 50/60Hz AC power supply.

9.Historical data and patient’s information can be reviewed and printed. The machine can store over 500 ECG reports in its built-in flash.

10.USB communication interfaces （optional）
