Zoll AED Plus Automated External Defibrillator

ZOLL AUTOMATED EXTERNAL DEFIBRILLATOR (AED)

Model: AED-PLUS Fully compliant with AHA & ERC 2015 Guidelines.
• Waveform: Rectilinear Biphasic. Approved by FDA as clinically superior to monophasic for conversion of ventricular fibrillation in difficult-to-defibrillate (high impedance) patients and cardioversion of atrial fibrillation.
• Consistent waveform shape, amplitude & duration regardless of impedance level.
• Energy level: 120J, 150J, 200J Automatically pre-programmed.
• Charge time: Less than 10 sec with new batteries
• Built-in Defibrillator self-test.
• Defibrillation Advisory: Evaluates electrode connection and patient ECG to determine if defibrillation is required.
• New graphical/voice user interface.
• LCD display showing prompt messages, device advisory messages, elapsed time, shock count & chest compression graph display (If CPR-D Padz are used).
• Dimension: 13.3 (H) x 24.1 (W) x 29.2 (D) cm
• Weight: 3.1 Kg
• Infrared data transfer facility
• LCD display. Configurable to display ECG.
• Power: Standard commercially available Type 123A Photo-flash lithium manganese dioxide batteries, easily replaceable.
• Battery capacity: 300 shocks or 13 hours monitoring/defibrillation by new batteries.

• Operating temperature: Upto 50ºC
• Particle and water ingress standard: IP-55
• Device Classification: Class II
• Design Standard: AAMI DF-39, UL 2601, IEC 601-2-4, EN60601-1, E60606-1-2

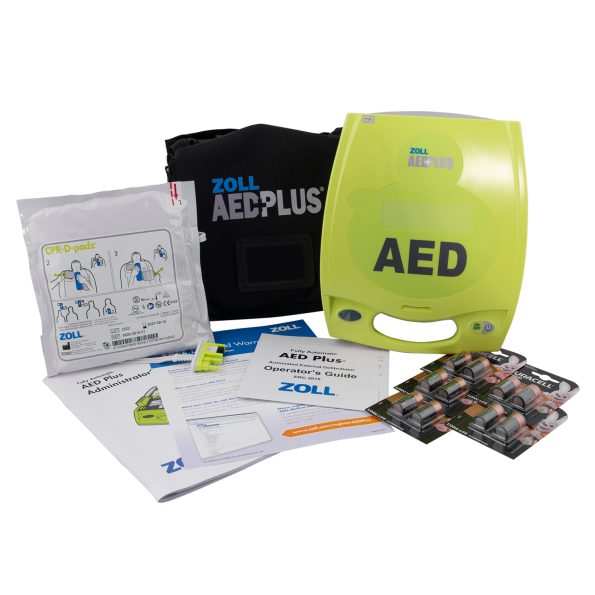

Each unit includes the following accessories:
• Battery, CR123 set = 10 nos/ Set.Battery Shelf Life (Standby) = 5 years OR 300
shocks
• AED Carry Case

What’s Special / UNIQUE about ZOLL AED Plus?
1. The only AED providing CPR feedback on depth and rate of compressions – not only a “shock-box”, AHA and ERC 2015 guidelines ready
2. Zoll’s patented Rectilinear Biphasic Waveform, the only waveform declared by FDA as superior to the Monophasic waveforms, especially with high-impedance patients.
3. Voice prompts available in 17 languages.4. Minimum training required.
5. One-piece electrode (CPR-Padz) for best and easiest positioning and CPR feedback.
6. Battery and CPR Padz Stand-by / shelf life = 5 years• Relative humidity: Upto 95%, non-condensing.

MADE IN USA
